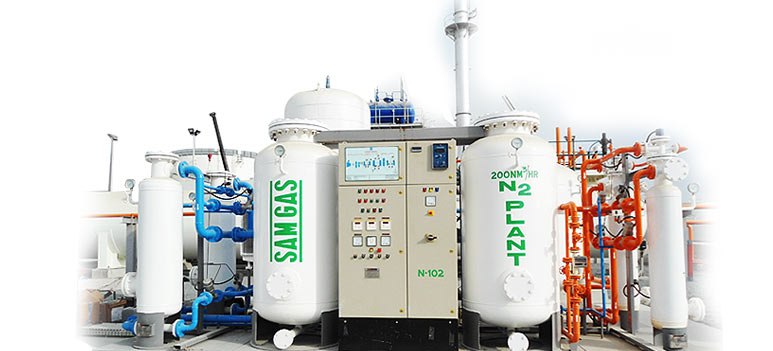

PSA Nitrogen Gas Plants - MS Model

We are manufacturers & exporters of High-Quality PSA Nitrogen Plants from India. Our Nitrogen Plants are based on latest PSA Technology & are widely used in various industrial & manufacturing units. Nitrogen purity in the range of 99% to 99.9999% can be achieved through our PSA Nitrogen gas generators & PSA Nitrogen gas plants. Our PSA nitrogen gas Plants are based on PSA technology, which is now widely used by almost half the world to manufacture Nitrogen Gas Plants & nitrogen gas generators, as the compressed air is passed through a dual bed system contains Carbon Molecular Sieves as a desiccant and it has preferential properties for adsorption of moisture first and then Oxygen by a systematic process.

The MS model of Nitrogen Plant operating on PSA technology, consists of twin tower system filled with special grade of carbon molecular sieves (C.M.S.) at a time, one tower keeps in production cycle and other in regeneration cycle.

It is used to produce nitrogen of a purity in range from 95% to 99% purity. However, if carbon molecular sieves quantity is increased, even 99.999% purity nitrogen can be produced from this model. But running cost would be higher in case of higher purity. Thus, this model is recommended for purity up to 99.9% only. This model is generally used to purging or Inertizing applications.

When compressed air passed through C.M.S. bed, the molecules of oxygen, moisture & other unwanted gases are adsorbed on surface of C.M.S. and the nitrogen which is not adsorbed by C.M.S comes out of adsorption tower and is collected in a surge vessel.

For continuous generation of nitrogen, two adsorption towers are provided which are interconnected with auto change over valves controlled by a sequence programmer. When one tower saturates with oxygen the process automatically changes over to another tower and thus the nitrogen production is continuous. This model is the simplest to produce nitrogen of a purity in range from 95% to 99% purity.

However, if carbon molecular sieves quantity is increased, even 99.999% purity nitrogen can be produced from this model. But running cost would be higher in case of higher purity. Thus, this model is recommended for purity up to 99.99% only. This model is generally used to purging or Inserting applications.

PSA Nitrogen Gas  Plants

We welcome your enquiry & try to respond in shortest possible time Yes! I am Interested

Available Types

  1. MS-L
  2. MS-H

Technical Specifications

  MS-L MS-H
GAS COMPOSITION
Oxygen 0.1 to 2 % 10-ppm to 500ppm
Hydrogen Nil Nil
Nitrogen 98-99.9% 99.5 to 99.999%
Dew Point (-)40ºC to (-)80ºC (-)60ºC to (-)80ºC
APPLICATIONS
As Inert gas In Chemical Industries, Food & Pharmaceutical Industries, for fire control in Coal mines etc As Inert gas in Chemical, Food Pharmaceutical Industries, Heat Treatment Furnaces, Electronic, Synthetic Fiber, Industries.
