Nitrogen Gas Plant

The Nitrogen Gas Plants works upon Pressure Swing Adsorption principle, which is a separation technology, used to separate Nitrogen and Oxygen molecules from compressed air. These generators are custom made and can be adjusted to give the desired Nitrogen quality for your Process and Application.

PSA Nitrogen Gas Plant

The MS model of Nitrogen Plant operating on PSA technology, consists of twin tower system filled with special grade of Carbon Molecular Sieves (C.M.S.) at a time, one tower keeps in production cycle and other in regeneration cycle.

PSA Nitrogen Gas Plant Models
Gas	MS-L	MS-H	DX	CU-DX
Oxygen	0.1-2%	10 to 500-ppm	1 to 3-ppm (max)	1-ppm (max)
Hydrogen	Nil	Nil	> 0.5%	Nil
Nitrogen	98-99%	99.5-99.999%	Balance	99.9999%
Dew Point	(-) 40°C to (-) 80°C	(-) 60°C to (-) 80°C	(-) 40°C to (-) 80°C

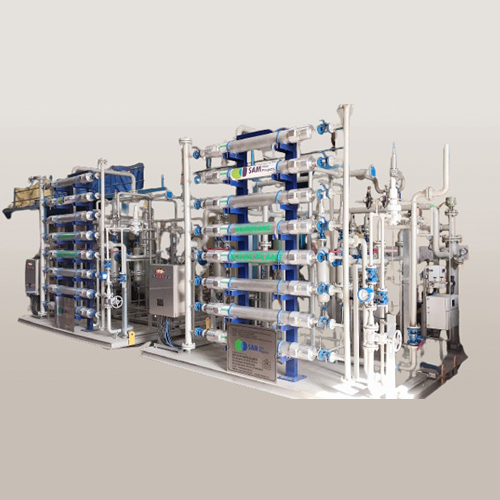

Membrane Nitrogen Gas Plant

The membrane Nitrogen plants are a cylindrical bundle of hollow fiber fine tubes made from polymer material. Each bundle contains several million fibers. Air enters at one end and flows to the opposite end through the fiber bore.
